Is Your Screw Conveyor Right Or Left Handed?

Uncertain if your screw conveyor is Right Hand or Left Hand? Wonder no more…

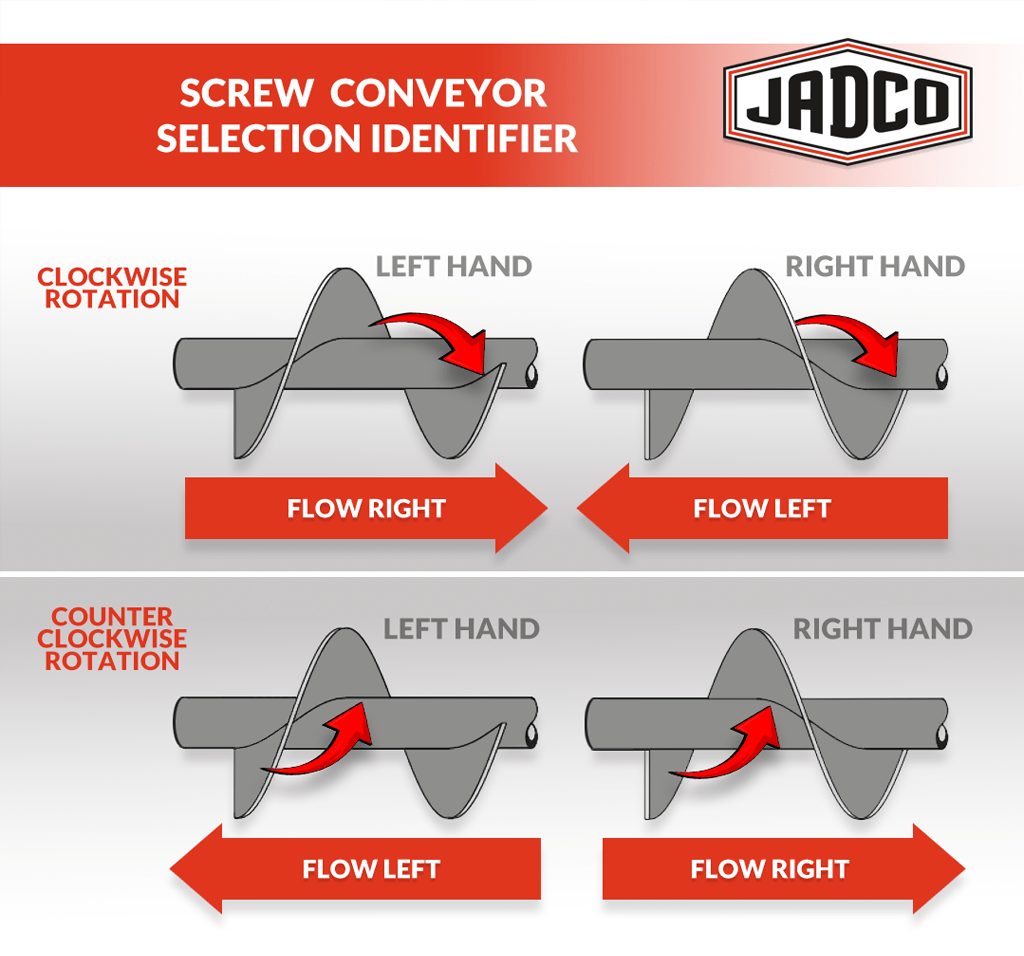

Notice the right hand or left hand flight direction remains the same. Which one you need depends on the rotation and your material flow direction.

Here Is A Quick Example:

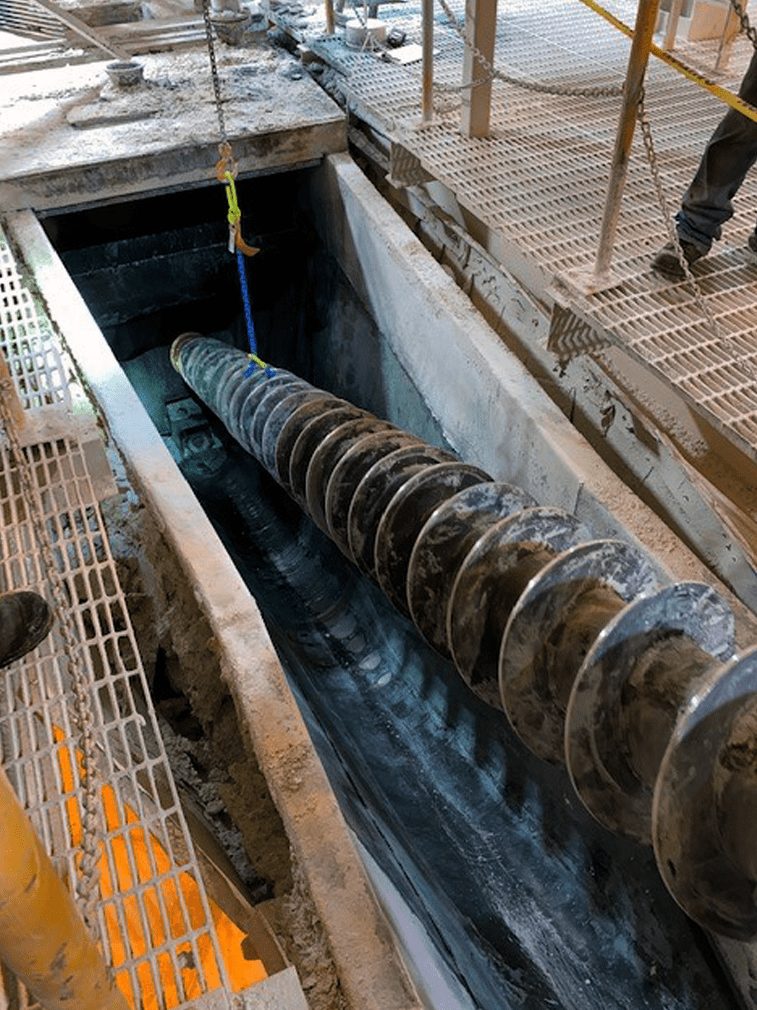

A papermill reliability engineer called JADCO to quote a new Lime Slaker Screw. They were impressed with the longer life they experienced using CHROMEWELD 600 ™ to resolve a prior troublesome wear application. When asked if their screw was right or left handed, he wasn’t sure.

We were standing at the drive end looking downhill toward the end of the screw. The screw was turning clockwise, pulling the material uphill. This meant it was a right hand screw.

Most major screw manufacturers offering low priced screws, often use mild steel for their flight material. Can you afford to shut down your production to frequently change them out?

JADCO delivers the longest lasting screw conveyors in your industry.

The following information is needed to quote your screw, along with some common terms used to describe items making up a screw conveyor:

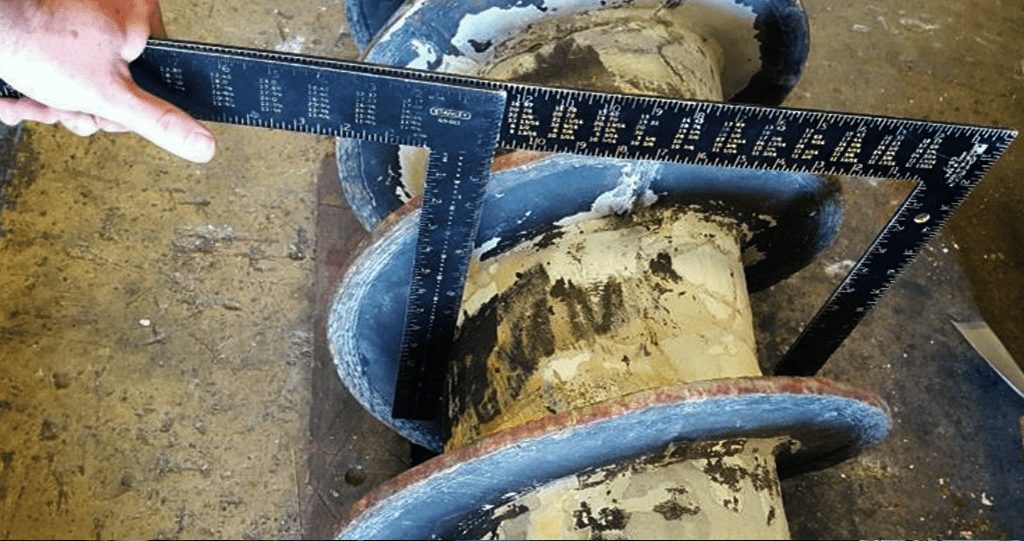

The barrel or body is usually made from standard pipe or mechanical tubing. High wear areas may have an additional protective layer, particularly where material is dropping directly on the barrel. To determine the diameter of the barrel, use two carpenter squares as shown above to act as a caliper. Make certain to clean off the surface contact areas for an accurate measurement.

Pipes and tubing come in standard sizes, making them easy to identify. This is the Inside Dimension of your flights. Using the squares, also determine the Outside Dimension of the flight.

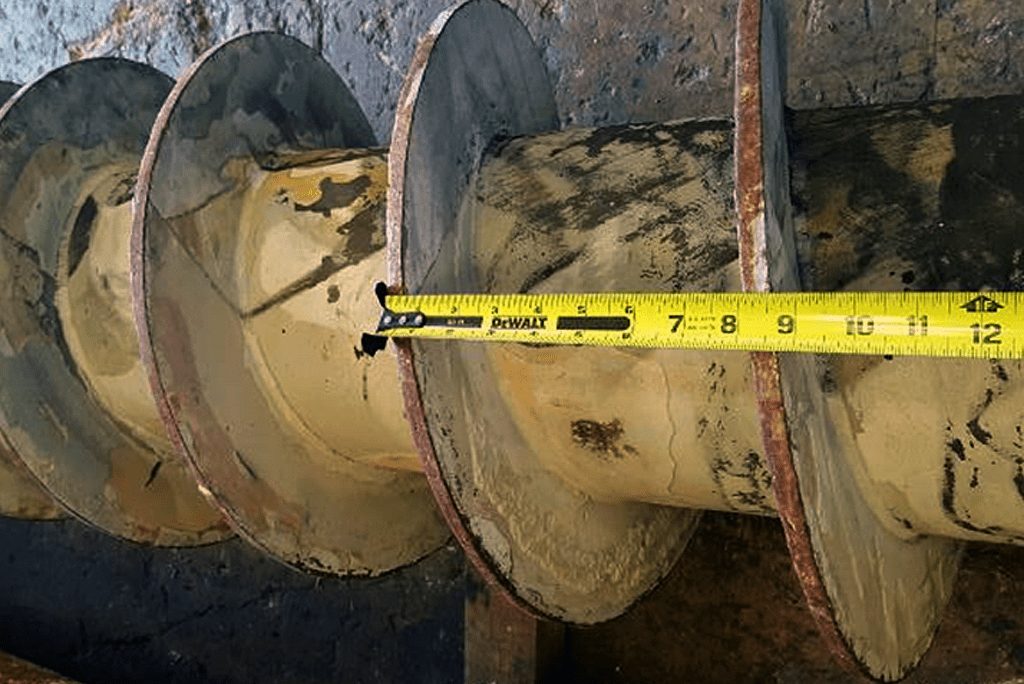

Pitch: The distance from the side of one plate between the flights at 360° of rotation. Measure to the same side on the next plate, as shown above. Check to see if this dimension changes along the length of the screw. If it is, this is called a variable pitch; and is quite common. Count the number of pitches and the overall length of flights.

JADCO CHROMEWELD 600 ™ is the industry standard for long lasting flights. Here you can see the wear life difference compared to mild steel and AR500, commonly used to make screw flights. How long do your flights last?

Barrel: How long is it?

Are there flanges or shafts on the end? Is there hardfacing or a wear resistant protective cover in the drop area? Photos and sketches will help to get you the most accurate price.

If your barrel and drive ends are still in good shape, we can often rebuild them with new flights to save you substantial investment.

Flights: What is the Outside Diameter and Inside Diameter? What is the flight made from? What is the flight thickness? Is there additional hardfacing material on the flight?

Are there flanges or shafts on the end? Is there hardfacing or a wear resistant protective cover in the drop area? Photos and sketches will help to get you the most accurate price.

If your barrel and drive ends are still in good shape, we can often rebuild them with new flights to save you substantial investment.

Additional information: What is the temperature of the material being moved? How many screws are needed? To determine our production schedule, when do they need to be on site?

As the leading manufacturer of Chrome Carbide Overlay (CCO) plate in the USA, you can depend on the results you get from JADCO. Most steel distributors buy foreign CCO which has little carbide content, and even less quality control.

Our entire CHROMEWELD family of CCO products are made at our headquarters in Harmony, PA, 30 minutes North of Pittsburgh.

To make certain we deliver the longest lasting materials to our customers, JADCO has created our own clad machines. This gives us total control over every aspect of making our industry leading CHROMEWELD overlay plate.

Never consider the CHROMEWELD ™ family of products as a “One Size Fits All” wear plate. Our customers are always looking to us for continuous improvement, and rely upon JADCO to continue to create new products, to address their specific wear challenges.

This further improves your wear plate performance results by having the Research and Development for these state-of-the-art wear resistant products. Each one is already completed and proven in real world applications, before you ever install them in your equipment.

For over 45 years, JADCO has focused exclusively on delivering consistent, longer life for our customers.

We pride ourselves to deliver “Walk Away Results” to you. This means after you install JADCO wear resistant steel products, we are both able to walk away knowing you will not lose sleep wondering if these wear products will fail in your equipment at the worst possible time. Not with JADCO.

Now you understand why we are able to deliver better results to our customers. We think differently by strictly focusing on improving your current results. This is why we deliver better performance results for our customers.

Allow us to help you today by emailing us at info@jadcomfg.com or calling (724) 452-5252.

We will schedule a meeting with one of our local wear plate specialists at a time that best fits your schedule.

Remember, the only thing you have to lose by not working with JADCO, are your profits.

When your usual screw conveyor gives out, give JADCO a shout!
