Go With The Flow…CHROMEWELD FLOW
Is the material you are moving wearing out your piping?
JADCO has the answer to premature wear and equipment failures.

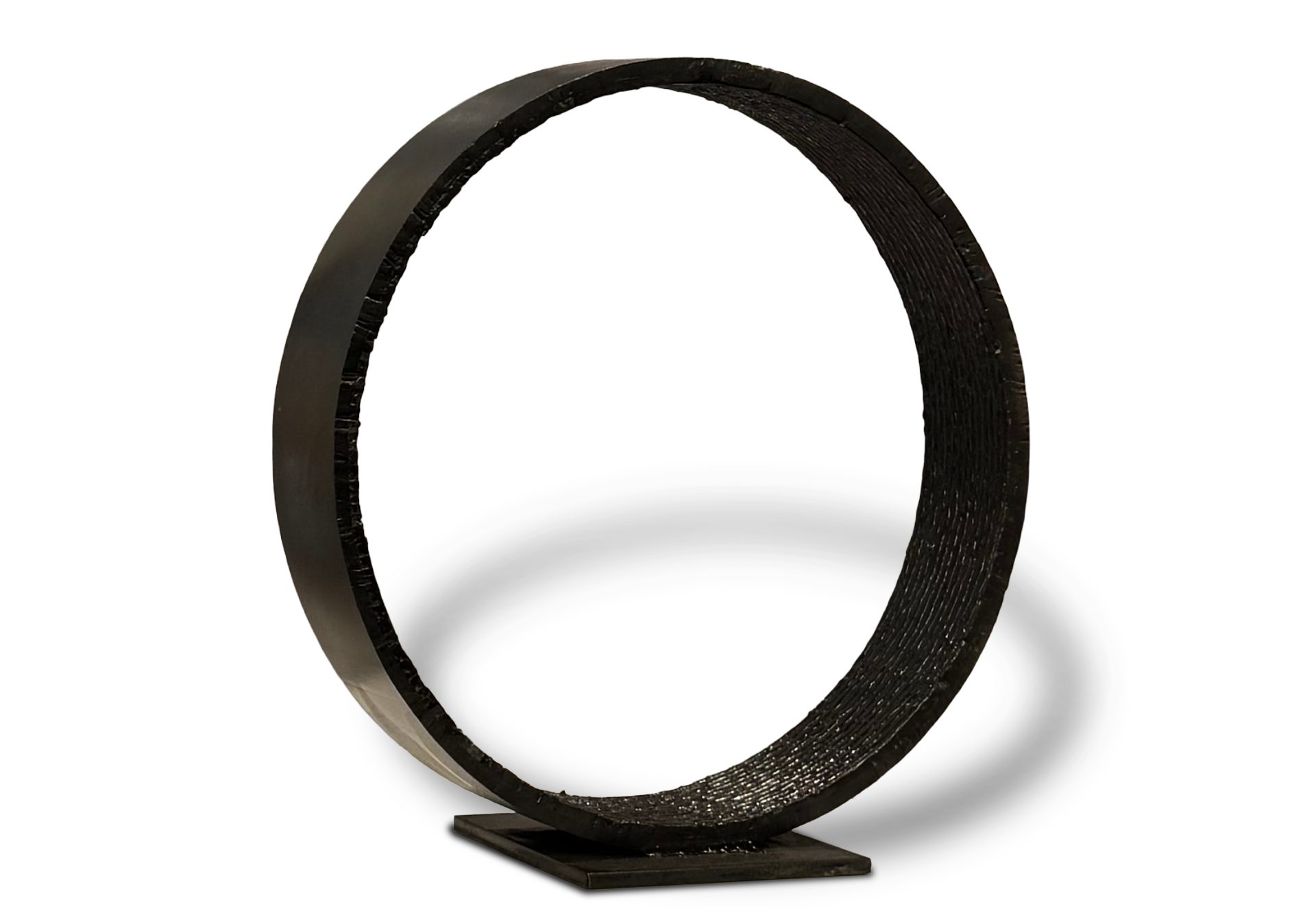

Looking at the 5 o’clock position, you can see light reflecting off the hardfacing weld beads. We can overlay the inside of pipe, in sizes ranging from 5” to 48”.
How is this made?
It is produced with a steel pipe and hardfaced/overlayed on the ID with chromium carbide hardfacing welding wire. CHROMEWELD™ FLOW will yield outstanding results if you follow these helpful instructions.
Fabrication Information
Cutting:
Accomplished by using plasma, air arc, abrasive saw or waterjet.
Machining:
The overlay surface can only be finished by grinding. You may may produce countersunk holes for bolts by wire EDM, plasma arc cutting, or carbon-arc gouging. Pre-machined mild steel inserts may be welded into straight holes for additional machining. CHROMEWELD™ FLOW cannot be machined by ordinary methods.
Cold Bending:
Material is not readily formable.
Welding:
CHROMEWELD™ FLOW overlay pipe can be joined by welding substrate to substrate using 309 weld wire/rod. Fittings include bends, elbows, tees and reducers. All interior weld seams and joints exposed to wear, should be protected by a cap weld of CHROMEWELD™ FUSION.
Mechanical Information
CHROMEWELD™ FLOW typical hardness ranges from 52-56 HRC with a single weld pass thickness. On a double weld pass, the hardness increases to 58-62 HRC.
General Information
- Diameters Available from 5” – 48”
- Lengths will vary based on diameter of the pipe.
- CHROMEWELD™ FLOW displays excellent abrasion resistance and will withstand continuous moderate impact.
- CHROMEWELD™ FLOW overlay will remain abrasion resistant at temperatures up to 1100°F.
- Standard wall thicknesses range from 1/8” – 3/8”
Your specific application needs, including custom requirements (thickness, alloy and size), are capable at JADCO.
The JADCO process produces a microstructure consisting of fully austenitic matrix filled with primary carbides. This structure provides outstanding abrasion resistance in the most challenging applications.
Applications
- Coal Processing
- Power Generation
- Pulp and Paper
- Dredging Lines
- Sand Slurry
- Mining
- Ash Pipe
As the leading manufacturer of Chrome Carbide Overlay (CCO) products in the USA, you can depend on the results you get from JADCO.
Our entire CHROMEWELD ™ family of CCO products are made at our headquarters in Harmony, PA, located 30 minutes North of Pittsburgh.
Never consider the CHROMEWELD™ family of products as a “One Size Fits All” wear plate. Our customers look to us for continuous wear resistant improvement. They rely upon JADCO to create new products to address their specific wear challenges.
This improves your wear plate performance results further; it’s like having your own Research and Development for state-of-the-art wear resistant products. Each Chromeweld ™ product has been proven in real world applications, before you ever install them in your equipment.
For the last 45+ years, JADCO has focused exclusively on delivering consistent, longer life for our customers.
Now you understand why we deliver better results for our customers. We think differently by focusing only on your results.
Allow us to help you today by emailing us at info@jadcomfg.com or calling (724) 452-5252.
We will schedule a meeting with one of our local wear plate specialists at a time that best fits your schedule.
Remember, the only thing you have to lose by not working with JADCO, are your profits.
When your pipes give out, give JADCO a shout!
