Chrome Carbide Welding Out-Of-Position

Mid-September starts your review of what wear items need to be addressed over the winter / repair season. Here is an option to save time and cost this year.

Previously, if you needed to do out-of-position welding repairs on your Chrome Carbide Overlay (CCO) hardfaced equipment, you needed to use a tool steel type hardfacing.

When you tried welding chrome carbide hardfacing wires out of position, you discovered the weld deposits would run off the equipment like water. This is because Chrome Carbide welding wires simply didn’t run out of position. Plus if you are welding outdoors with a shielding gas, it often blows away; further compromising your weld deposit.

And if you have to chip off the slag blanket protecting the weld deposit while it cooled, before making your next pass. None of this benefitted your efforts trying to beat the clock.

Most People Do Not Realize Tool Steel Deposits Are Far Less Abrasion Resistant Than Quality Chrome Carbide Hardfacing Deposits.

For decades, industrial abrasion applications have had success using Chrome Carbide products to combat abrasion challenges. For repairing your application, you had the choice of either hand applying hardsurface products or a Chrome Carbide Overlay (CCO) plate such as CHROMEWELD ^™ 600.

Many companies have struggled with field repairs where Chrome Carbide wires were limited to welding in flat or horizontal positions. Attempts to weld vertically or overhead had the molten weld deposit run off the steel like water.

When the deposit is lying on the ground, your Chrome Carbide welding alloy investment cannot protect your equipment. Not to mention the many hours you just wasted trying to apply the hardfacing.

Even Better, FUSION ™ 600 Wire Doesn’t Require A Shielding Gas.

This photo of a 3 pass vertical up hardfacing deposit using JADCO Fusion 600 ™ wire. With proper settings and techniques, this wire can weld vertical up, vertical down and overhead.

NOTE: Notice the lack of spatter using Fusion 600 ™. The deposit was not cleaned up after welding, for the photograph.

FUSION^™ 600

FUSION™ 600 is a high chromium cast iron alloy for hardsurfacing components subject to extreme abrasive wear and moderate impact.

The FUSION™ 600 deposit contains a high quantity of hard primary chromium carbides in a tough austenitic (non-magnetic) matrix.

The weld deposit is similar to JADCO’s CHROMEWELD™ 600 overlay plate. Using special weld settings, FUSION™ 600 can be welded out of position. This product is used for hardfacing components experiencing wear by sand, earth and abrasives.

This chart displays the improvement in Abrasion Resistance between the various hard surface options. The largest difference in abrasion resistance is the three materials on the left have no Chrome Carbides. The quantity of Chrome Carbides is higher with Fusion 600 ™.

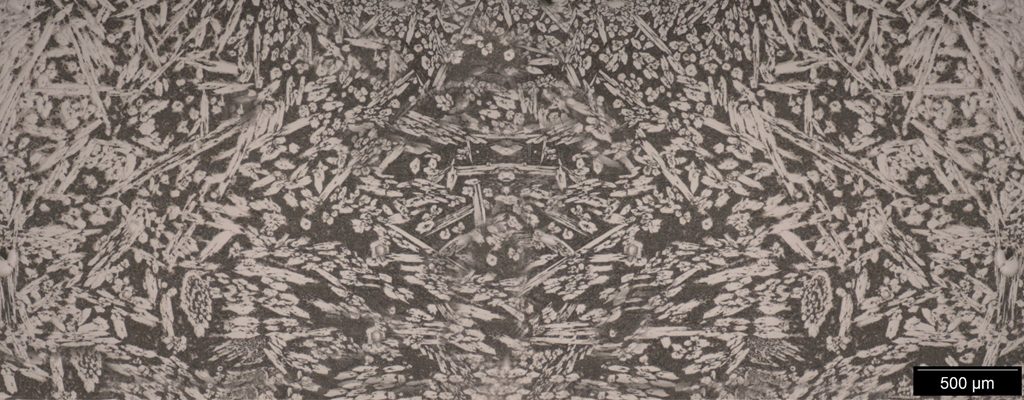

This photomicrograph of Fusion 600 ™ carbides, shows the scale for 500 microns. There are 25,400 microns per inch, so 500 microns equals 19/1000ths of an inch. With this many carbides packed so tightly together, your wear resistance is locked and loaded to protect your equipment.

You Can Also Hardface Vertical Down Using Fusion 600

Many welders prefer to weld vertical down rather than vertical up, and are more productive using this preference. Fusion 600 ™ provides excellent hardfacing results, regardless of your preferred direction of travel.

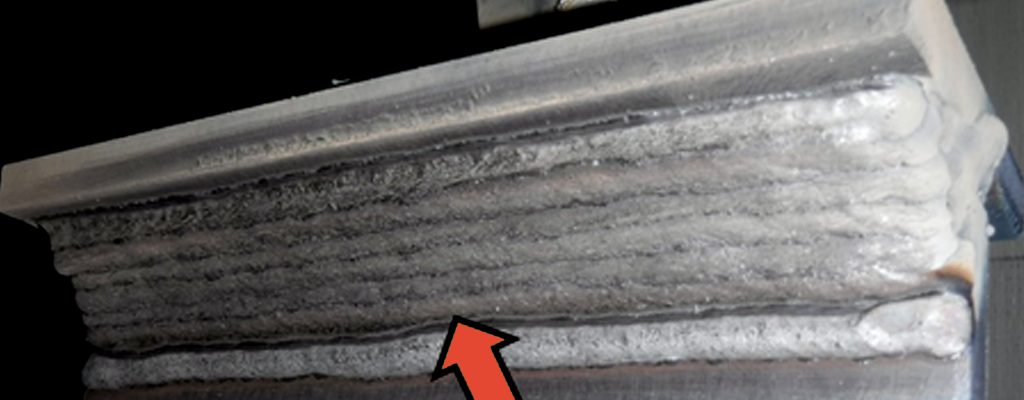

And You Can Now Hardsurface Overhead

Overhead welding with normal Chrome Carbide hard facing wires are usually considered impossible. Fusion 600 ™ allows you to protect your wear areas without dismantling your equipment, for a substantial time savings.

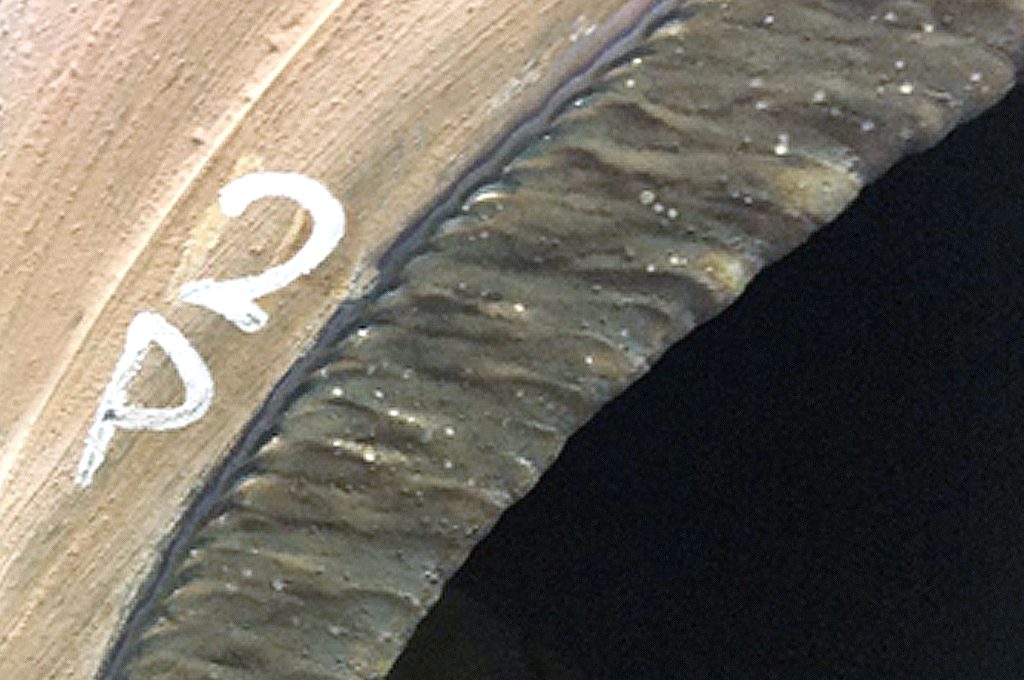

Combat Abrasive Wear On Pipe Flange Joints With Fusion 600^™

Blow lines always struggle with abrasion wear on their pipe end flange joints. Now you can stop abrasion in this critical area and efficiently control leaks by hardfacing these areas. With the pipes horizontal, you are able to hard surface weld vertical down Using Fusion 600 ™, to control your wear and extend the life of your pipes.

Are You Limited To Only Using Stick Electrodes For Hardfacing?
JADCO Has The Right Products For You Here Also.

If your location or welding equipment limitations prevent you from using hardfacing wire, Fusion 600-E is the electrode version; which also welds out of position.

To Recap Your Benefits Using Fusion 600 Wire

Contact JADCO today for straight talk to finally take control of your abrasion and impact requirements

For over the last 43+ years JADCO has focused exclusively on delivering consistent, longer equipment life for our customers.

Now you understand why we are able to deliver better results to our customers. We think differently by strictly focusing to improve your current results.

We pride ourselves to deliver “Walk Away Results” to you. This means we are both able to walk away after you install JADCO wear resistant steel products, knowing you will not lose any sleep wondering if these wear products in your equipment will fail at the worst possible time. Not with JADCO.

Allow us to help you improve your hardfacing results today by calling (724) 452-5252, or email info@jadcomfg.com.

We will schedule a meeting with one of our local wear plate specialists at a time that best fits your schedule.

Remember, the only thing you have to lose by not working with JADCO, are your profits.
